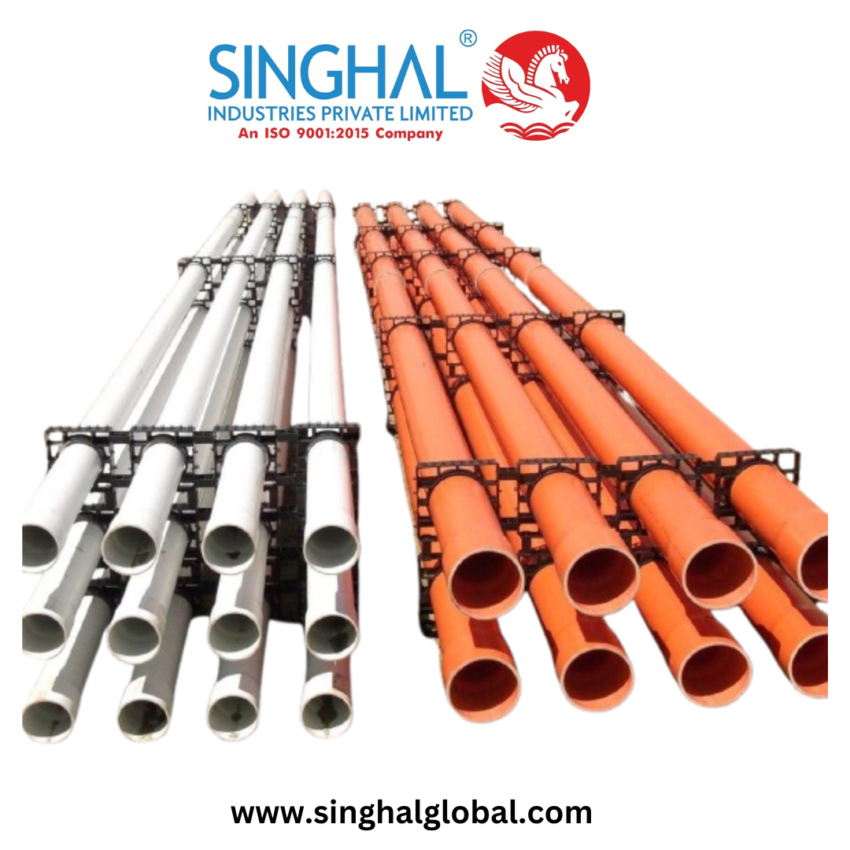

Most of the modern infrastructure you might see is simply a combination of different underground utility networks. At the heart of this efficiency is the state-of-the-art design HDPE duct spacer that forms a vital technology to structure and safeguard underground piping systems. These spacers are made of high-density polyethylene, a well-known material for its incredible strength-to-weight ratio and chemical inertness. When working in large-scale construction, the integrity of your conduit banks is critical. If spacing is not precise, the ducts may move relative to one another during backfilling or they may be compressed by the weight of soil and traffic above. Instead, engineers use sophisticated spacers that stabilize every conduit in the correct position, ensuring a free and protective passage for electrical, telecommunications, and data cables. It is not just a pretty design system, you are systematically organized which is a necessity to avoid cable damages and to create a long-lasting reliable system.
Engineering Excellence in Material Selection
The tough environment of underground has brought the house and duct spacers and thus with this complexity in the designs, HDPE (High-Density Polyethylene) material is accepted as a material in the major duct systems. HDPE is not only corrosion resistant but also has a higher resistance to most soil chemistry and moisture conditions than traditional metals or lower-grade plastics. This makes it a perfect option as a Hdpe Duct Spacer Factory India that wants to provide solutions from the various geographic terrain. Its intrinsic flexibility makes it impact resistant and helps to resist cracking, which is essential during preliminary-installation procedures of the heavier machinery and hand-cranking. In addition, the high-performance HDPE retains its dimensional stability over a wide temperature range; and therefore, the spacers would not warp or become brittle when installed in humid coastal conditions as well as harsh dry inland (high-temperature) environments.
High-Voltage Electrical Distribution Networks
High density polyethylene duct spacers have some of the best applications in high voltage electrical distribution system deployment. And in those environments, even controlling that heat is a matter of safety. In the case of many power cables that are densely packed, the heat produced by the electrical flow can build up and result in insulation failure. HDPE spacers for designed in such a way to preserve and even distance between the conduits that create an air layer or concrete around the tubes. This separation provides a thermal buffer which can mitigate the “hot spot” effect and prolongs service life of the cables. In projects where the duct bank is encapsulated (within concrete), the spacers are guaranteed to allow even flow of the concrete in between all conduits which helps in eliminating voids that can weaken a structural element or cause non-uniform pressures.
Telecommunications and Fiber Optic Infrastructure
Fiber optic networks are fast becoming a high priority for expansion globally, as demand soars for high speed data. The benefits of advanced HDPE duct spacers are crucial in this sector, which is characterized by precision. The optic fibre cables are very sensitive to micro-bends and mechanical stress, which can impair the quality signals. Complex spacers support the pipes & organize their position so that even for long distances communication ducts are properly aligned. It is especially important in “multi-duct” setups, where a together. The spacers also orient those paths straight and tidy to allow a much easier cable “blow” or pulling process, with minimal chance of snags or damage to the fragile glass fibers.
Data Centers and Hyperscale Infrastructure
With the emergence of hyperscale data centers, the complexity of design for underground utility has increased. These centers are power and data-hungry, often with hundreds of conduits coming into a single building. This is where innovative HDPE duct spacers come into play, allowing for very high density conduit entries to be organized in a precise manner. Our spacers are modular, interlocking and easy to stack in a custom layout not possible with traditional mass-produced off-the-shelf components. A top Hdpe Duct Spacer Exporter India is characterized by this kind of customization to meet the most rigorous data center requirements that come from international contractors with specific geometries.
Roadway and Railway Under-Crossings
The challenges of installing utilities under a busy transportation corridor–such as roads and railways–include handling significant vibration and high load-bearing conditions. Here, duct spacers provide support for carrier ducts within a “casing pipe.” The spacers serve to insulate the internal conduits from passing traffic vibrations and load. HDPE also offers electrical isolation and is non-conductive which is important in railway environments where stray currents can at times create interference or corrosion problems in metallic components.
Water and Industrial Piping Systems
Though widely known for use in electrical and data lines, advanced HDPE spacers are also making their way into water and industrial piping roles as well. In “pipe-in-pipe” applications in which a carrier pipe is placed inside a more extensive sleeve for additional protection, spacers maintain the central position of the inner pipe. It prevents the inner pipe from being in direct contact with the bottom of the casing, which means that there is less chance for it to rub against edges or get worn unevenly. In these cases, when chemical transport is required in industrial plants, the chemical resistance of HDPE guarantees that even in the case of a small leak of corrosive substances inside the containment area, these spacers will not be destroyed.
Optimization of Construction Timelines
For example, construction site efficiency, which is one of the main factors determining project profitability. Advanced HDPE duct spacers offer quick builds and most use snap-lock or interlocking features that allow for tool-free assembly. This greatly minimizes the man hours required to place intricate duct banks. In addition, since the spacers create a rigid and ds2820b predictable structure, contractors can do what is sometimes referred to as “above-ground assembly” of conduit runs and then lower the entire bundle into the trench. Its approach is both safer and quicker than piecing together pairs of pipes in a narrow or muddy trench, as intelligent design can create more economic development-ready solutions.
Conclusion
Modern design HDPE duct spacers are no longer simply plastic supports, however, but engineered components known for providing efficient distribution of stress and becoming essential to the infrastructure of new FD systems. This ability to provide consistent, repeatable alignment, and offer thermal managements and mechanical protection makes them the chosen medium for power telecom and industrial projects across the globe. Project managers have the reassurance that their underground assets are protected for decades by choosing quality products from a reputed Hdpe Duct Spacer Factory India. With the world increasingly connected and power-yet-more dependency-driven, these barely-seen heroes of construction are set to become even more integral.
FAQ
What are the key advantages of using HDPE for duct spacers?
HDPE was selected for its high impact resistance, chemical resistance, and non-conductive properties to ensure the spacers would withstand decades underground without corroding.
Are there different spacers we could buy for other conduit sizes?
Yes, there are advanced spacer options that come in a variety of modular designs capable of being interlocked for multi-pipe duct banks with varying configurations and pipe diameters.
How do duct spacers help in heat dissipation?
Spacers provide a consistent and constrained distance between power conduits, minimizing heat buildup while allowing the flow of concrete or air, which can then aid in dissipating thermal energy.
Can HDPE duct spacers be used for trenchless?
Absolutely. They are regularly utilized as a part of bore-and-casing applications to uphold and save carrier pipes amid pull-through segments underground.
Who Is The Largest Exporter Of Hdpe Duct Spacer?
Singhal Industries Private Limited is a leading HDPE duct spacer manufacturers leaders for infrastructure projects with precision engineered solutions.
