Every small step in the investment casting process affects the quality of the finished product, with sprue preparation being a critical component. The wax sprue extruder provides consistent and defect-free wax sprues for proper metal flow, feeding, and minimization of defects in castings. Wax sprue extruder machines made by IC Machines allow modern foundries and jewellery casting to create accurate, efficient, and repeatable wax patterns.
Understand the purpose of the wax sprue extruder machine.
The main purpose of a wax sprue extruder machine is to produce uniform wax rods (wax sprues) made from casting wax. The wax sprue… are attached to wax patterns to form a complete wax tree, which will ultimately form the basis for both building ceramic shells and pouring metals through onto that ceramic shell.
When the wax sprue is properly extruded, the wax sprue can:
- Allow for smooth flows of metals into the moulds
- Reduce turbulence and shrinkage defects
- Have a consistent cross section
- Increase overall casting yield

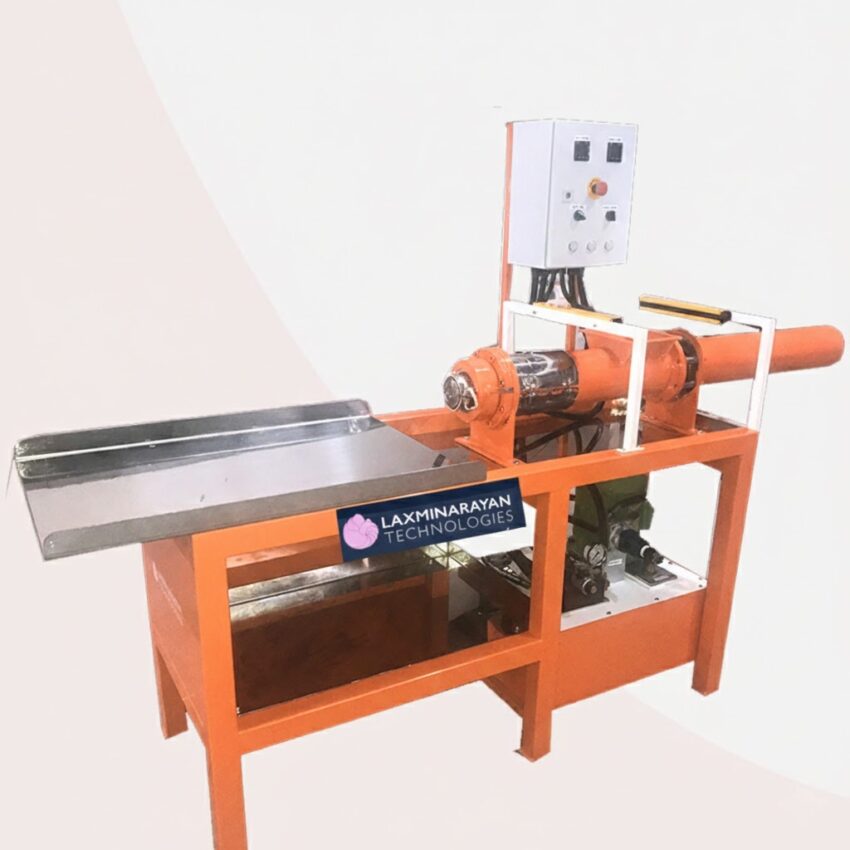

Components of a Wax Sprue Extruder Machine
Though designs may vary between different models, an IC Machines wax sprue extruder machine typically consists of:
- A heating chamber (i.e., a wax barrel)
- A temperature control system
- An extrusion piston or screw mechanism
- Multiple die plates (i.e., with various diameters)
- A control panel
- A safety enclosure
- A collection tray or guide
Knowing about these components can allow operators to better operate and utilize the machine.
A Guide to Using a Wax Sprue Extruder: Step by Step
Step 1: Selecting Wax for Casting
To begin, choose an investment-casting wax compatible with your needs. The wax you choose should exhibit the following characteristics:
- Melting characteristics that are stable during its time of use
- Excellent flow characteristics
- Low ash content
Depending on the size of the castings, the wax may be broken into smaller pieces, and the surface should be free from contaminants such as dirt.
Step 2: Heating Up and Setting Temperature
To start the wax sprue extruder, press the ‘on’ button and torque the wiring once the correct temperature has been set. When using the extruder, avoid overheating the wax as this can result in poor quality. Conversely, if the wax is set too low, this can lead to incomplete extrusion or uneven sprugs. Ensure to use the temperature range that IC Machines recommends for your type of wax in relation to the setting of the machine, and allow an adequate amount of time for your wax to completely cool down in the heating chamber.
Step 3: Fitting the Correct Die Size
Selecting a die will determine the dimensions of your wax runner.
Die selection should be made based on:
- The size of your wax pattern
- The type of metal you will pour into the pattern
- The desired feeding rate of the die
For thicker castings, larger runners are recommended; whereas, smaller runners are appropriate for fine jewelry patterns.
Make sure that the die is solidly in place before beginning the extrusion process.
Step 4: Loading Flattened Wax into the Machine
Once the wax is at the optimal melting point:
- Using either hot wax or lukewarm wax, load it into the tank
- Be sure to tightly seal the chamber of the tank
- Be sure that the wax does not leak out
Effective loading of the wax will help to eliminate any loss of pressure during extrusion, while also producing an even flow through the entire die.
Step 5: Beginning the Extrusion Process
When you are ready to begin Extrusion:
- Operate the extrusion mechanism with either your control switch or pedal
- During extrusion, continue to keep even and steady pressure on the wax
- Allow the wax to flow evenly through the die
- Avoid sudden and radical changes in pressure on the wax sprue.
The resultant wax sprue should be smooth and even in diameter with no cracks or bubbles in it.
Step 6. Assist with the Cooling Process of the Extruded Wax Sprue
Once the wax sprue exits the die:
- The wax sprue should be carefully directed onto a collection tray or down a slide to cool
- The wax sprue should not be bent or stretched while hot
- Wax should naturally cool so that it will have the best size stability when assembled later
- Forced cooling is not recommended unless specified, as this may cause internal stresses to occur within the wax.
Step 7. Once the wax sprue has completely cooled,
- Cut the sprue to its proper length using a knife
- Store sprues in a clean, controlled environment
- Store sprues out of direct heat or light.
Storage in the same controlled environment allows for consistent repeatability at the time of tree assembly.
Tips for Optimal Wax Sprue Extrusion
There are several key considerations when it comes to obtaining optimal output from your wax sprue extruding process.
Temperature Consistency
Temperature imbalances create problems with both surface quality and diameter consistency for the resulting sprues. It’s very important to check your temperature indicators regularly.
WAX CLEANLINESS
Recycled wax must be properly filtered before reuse to eliminate contamination and the potential for extruder blockage and surface defects.
DIE SIZE MATCHES CASTING DESIGN
A properly sized sprue is vital for creating well-fed castings with minimal use of metal. You may either waste material or create poorly castings due to an incorrectly sized sprue.
TRAINING FOR EXTRUDER OPERATOR
Material wastage can be reduced with appropriate training of operators, while proper training will extend the useful life of your wax extruder machine.
Common Mistakes to Avoid
Many experienced operators are faced with problems when simple precautions are neglected.
Overheating the wax will render it brittle
Using incorrect die sizes
Excessively high pressure during extrusion
Skipping cleaning the machine at regular intervals
Neglecting to follow safety procedures
By steering clear of these common mistakes, you’ll have fewer problems, better production efficiency and high quality products.
Routine Maintenance – Routine maintenance is critical to the ongoing performance of your IC Machines wax spooling extruders.
Daily Maintenance:
– After every shift the die plates should be cleaned.
– Any wax that has residual in the extrusion chambers should be removed.
– Inspect the heating elements visually.
Periodic Maintenance:
– Temperature sensors and controllers should be checked periodically.
– Moving parts should be lubricated according to manufacturer’s recommendations.
– Seals and gaskets should be inspected periodically.
Safety Checks:
– Make sure that emergency stops are functioning properly.
– All electrical connections should be checked.
– Guards and Covers should be on the machines at all times.
If you perform the recommended preventive maintenance, it will minimize downtime and overall repair costs.
Safety Guidelines for Using a Wax Sprue Extruder
Extreme hazards exist when using a wax extruder, as it involves the use of high-temperatures combined with excessive pressures. To ensure safe operation of the wax extruder the following safety precautions must be taken:
- Heat Resistant Gloves.
- Do Not Touch Molten Wax.
- Never Open Pressurized Chamber.
- Follow all Safety Instructions Provided by IC Machines.
- Keep Your Work Area Clean/Dry.
Your ability to operate efficiently and with confidence, is directly related to your observance of safety guidelines.
The applications of wax sprues are many and varied, including the following:
- Foundries – All Investment Casting Processes
- Aerospace – Production of aerospace components
- Automotive – Manufacturing of automotive precision parts
- Jewelry – Production of jewelry castings
- Industrial – Production of Industrial Metal Castings
Because wax sprue extruders produce consistent sprue profiles, they have proven themselves as essential components in producing high-quality castings.
IC Machines is the manufacturer of the wax sprue extruder machines which produce wax sprues using a precise temperature control system, Heavy-duty construction, ease of operation for users, consistent quality of extrusions, and dependable support after the sale.
IC Machines produce systems specifically designed for the foundry industry, in India and around the world, that improve productivity and dependability for both investment casting and jewelry production.
conclusion
Understanding how to use a wax sprue extruder machine correctly is essential for achieving consistent wax trees and defect-free castings.The entire process of producing a good casting encompasses multiple facets including wax preparation, selection of die types, and regular machine maintenance.
Using a quality machine from IC Machines and adhering to their guidelines will allow foundries and manufacturers to increase their efficiency and reduce the number of defective castings produced and create a reliable, repeatable process for producing castings in investment casting processes.
